A John Deere parts catalog is your most reliable source for identifying exact replacement parts, but mastering how to read model numbers, serial breaks, and aftermarket cross-references is what separates accurate procurement from costly mistakes. Most beginners treat the catalog as a simple lookup tool, but the real skill lies in understanding how to use a part number to make a procurement decision that balances cost, lead time, and quality. In my years sourcing components for heavy machinery, I have seen too many operators order the wrong hydraulic cylinder or undercarriage part because they overlooked a serial number split. This guide explains how to navigate the catalog and use its data to source parts confidently, whether you choose OEM or high-quality aftermarket alternatives.
What Is a John Deere Parts Catalog and How Does It Work?
A John Deere parts catalog is an official reference that lists every component for a specific machine model, complete with exploded-view diagrams, part numbers, and often ordering information. It is available online through the John Deere Parts website, and many dealers also offer printed copies for older equipment. The catalog is organized by machine system: engine, hydraulics, undercarriage, electrical, and so on. Each assembly diagram shows how parts fit together, and the accompanying table cross-references the numbered items to specific part numbers.
For someone managing a repair shop or a fleet of excavators and loaders, the catalog is the starting point for all part ordering. Without it, you risk buying a part that looks correct but does not match the exact revision your machine requires. The difference between a component that fits and one that does not often comes down to a single digit in the serial number range.

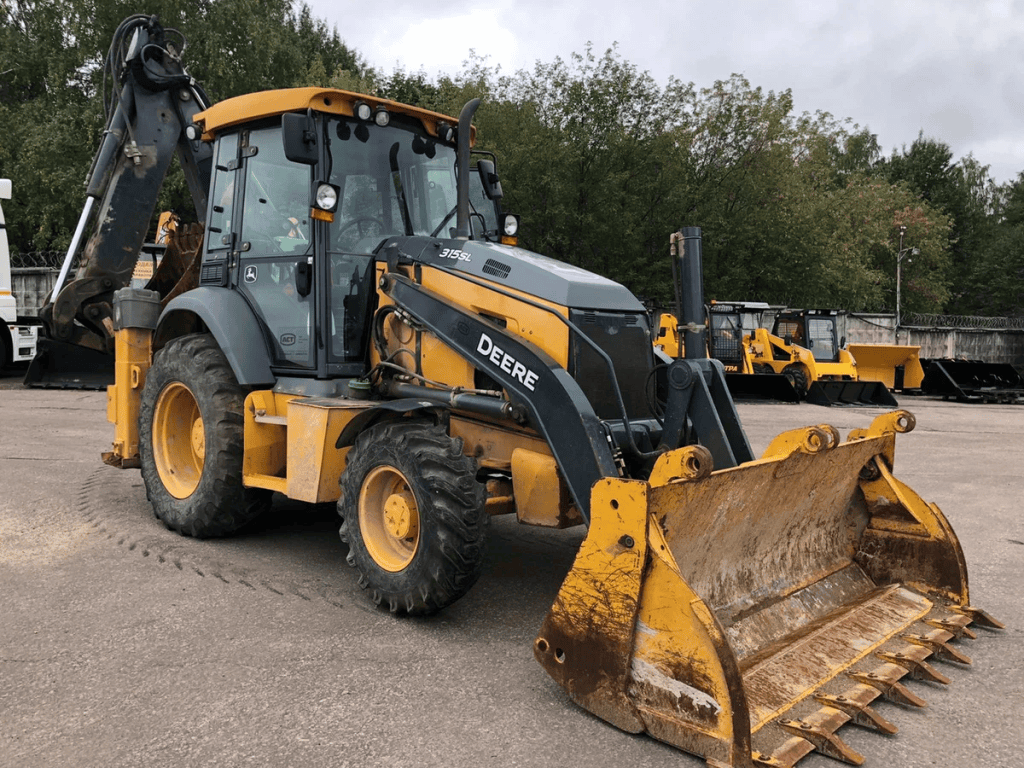

Where Do I Find the Model and Serial Number on My Machine?
Every John Deere machine has a model and serial number plate, usually placed on the frame near the engine bay or inside the cab door. The model number tells you the overall machine series, while the serial number identifies the exact unit and its production sequence. Serial number breaks are critical because parts catalogs are split at specific serial ranges. A hydraulic pump for a 210G Excavator built before serial number 300000 may be completely different from one built after that point.
I always recommend taking a clear photo of the plate and keeping it in your records. If the plate is worn or missing, the serial number may also be stamped on the engine block or a structural component. Failing to capture the full serial number is the most common mistake I see among first-time parts buyers.

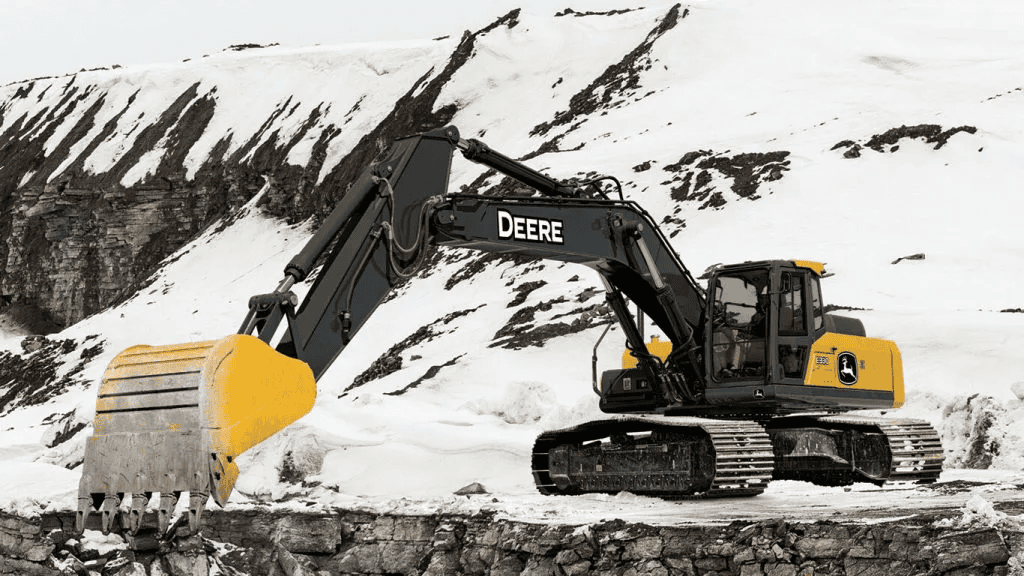

How Do I Navigate the John Deere Parts Catalog Effectively?
The online catalog interface allows you to search by entering the model number. Once you select the exact model, the system typically shows a schematic list of major systems. From there, you click through assemblies to see the exploded view and the corresponding parts list for each diagram reference number.
If you only have a part number, you can often search it directly, but the result may show every machine that uses that part. That is useful for cross-referencing, but to be certain the part matches your machine, always work from the model and serial number first. When I need to locate a specific seal kit or bearing, I start with the model and then check the serial number break before even looking at the part drawing.
How do I search by model number?
Type the model into the search bar in the format “310G” or “450D” without spaces. The system then asks you to pick the exact variant, because a model like the 210G may have multiple engine configurations. After selecting the correct variant, the main assembly groups appear. Click the group, then browse the diagram to locate the part you need.
What if I only have the part number?
Enter the part number directly. The search result will list every machine and subassembly that uses it. Use this to confirm your machine is listed, but treat it as a secondary check. A part number that fits a 310G engine may also fit a 450D, but that does not guarantee it is the correct revision for your serial range.
What Do the Part Numbers and Diagrams Actually Tell Me?
Part numbers follow a structured format, often starting with a model or component series prefix. The same diagram reference number can map to multiple part numbers depending on the serial break. For example, a seal listed as item 12 in the hydraulic cylinder assembly might have one part number for machines before serial 200000 and a different number after. The catalog documents these breaks in a small table under the diagram, but many beginners skip that table and order the first number they see.
| OEM Part Number | Aftermarket Equivalent | Applies to Serial Range | Notes |
|---|---|---|---|
| AT3032 | AT3032-A | Below 200000 | Aftermarket confirmed compatible with early models only. |
| RE6849 | RE6849-B | 200001 and above | Requires additional seal ring if used in high-hour machines. |
| T13542 | T13542 | All | Common wear part; aftermarket options widely available. |
The exploded diagram itself shows how the parts assemble together and often reveals whether you need gaskets or seals that are not labeled as separate items in the main list. Interpreting both the diagram and the serial break table together is the only way to avoid ordering incomplete sets of parts.
Why does the same model have multiple part numbers for the same component?
A running design change during production causes this. If the engineering team updated a seal gland or a shaft diameter, the new part is backward-incompatible. The catalog reflects that by splitting serial numbers. Without checking the serial break, you risk ordering a part that looks identical but will not fit your machine.
Can I use an aftermarket part that matches the catalog number?
Yes, when the aftermarket supplier cross-references the OEM number correctly and provides engineering data showing equivalent specifications. The challenge is that some aftermarket parts are labeled to match only one of several possible OEM numbers, so you still need to verify the serial range. This is where working with a sourcing partner who already knows the product line saves time. If your machine’s serial number falls at a break point, a quick confirmation with a knowledgeable supplier can prevent a misorder.
How Do I Source Parts from a Catalog: OEM, Aftermarket, or Alternative?
Once you have the correct part number from the catalog, you have several sourcing paths. OEM parts are guaranteed to fit and carry the manufacturer warranty, but their price is often two to three times higher than aftermarket equivalents. Aftermarket parts vary in quality. The best aftermarket manufacturers reverse-engineer the component and match or exceed the original specs, and they stand behind their parts with their own warranty.
During my time at Komatsu and now in my own company supplying construction machinery parts, I have seen that the most cost-effective approach for fleet managers is to use OEM parts for precision assemblies like pumps and control valves, while sourcing aftermarket alternatives for wear parts such as bushings, seals, and track shoes. The key is verifying that the aftermarket part is not a generic copy but a well-engineered equivalent tested in field conditions.
If you are importing parts, especially from overseas suppliers, ask for documentation that confirms the serial number range compatibility. A reputable supplier will have that data ready, while a low-quality one will claim universal fit even when the catalog clearly shows a break. This one check can save thousands of dollars in downtime.
When you have the catalog numbers in hand and need competitive pricing or a second opinion on compatibility, email your list to sales@sh-yshuo.com or call +86-21-55800172. We cross-reference OEM numbers with verified aftermarket alternatives every day and can confirm stock and lead times within one business day.
Common Questions About John Deere Parts Catalogs
What if my machine isn’t listed in the catalog?
Some older models, particularly those manufactured before digital records were standardized, may not appear in the online catalog. In that case, contact a John Deere dealer who maintains microfiche or paper manuals, or work with an aftermarket specialist who handles legacy equipment. We regularly source parts for machines built thirty years ago by cross-referencing physical catalog archives with existing component inventories.
Can I trust non-OEM parts suppliers?
Many equipment owners assume aftermarket always means low quality. That is not accurate. The better aftermarket suppliers operate engineering teams that analyze the OEM design and select materials that match or exceed the original. They also offer their own product warranty. The signal of reliability is whether the supplier is willing to provide a serial range compatibility statement and shares dimensional data. If a supplier says a part fits all machines without asking for your serial number, treat that as a red flag.
How often should I check the catalog for parts updates?
The frequency depends on the part category. Wear parts like bucket teeth, cutting edges, and hydraulic filters should be checked seasonally, especially if you run multiple shifts. For major assemblies, a catalog review during planned maintenance intervals is sufficient. I recommend reviewing the engine and hydraulic sections before every major service event, because part number supersessions are common and can affect your stocking plan.
What is the difference between a parts catalog and a service manual?
A parts catalog is only for identifying and ordering parts. It contains no service procedures, torque specifications, or troubleshooting guides. The service manual provides the step-by-step repair information. Both documents use the same component names and diagram references, so they work together. If you need to rebuild a cylinder, first use the parts catalog to list every seal and bushing you will replace, then follow the service manual for disassembly and reassembly. If your John Deere equipment uses an uncommon configuration or you need a replacement part quickly, send us your machine details and part numbers at sales@sh-yshuo.com. We will confirm whether verified aftermarket alternatives are available that meet the same specifications.
