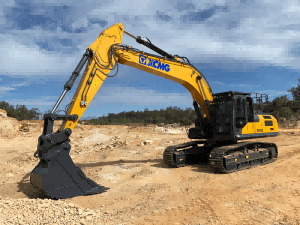

An excavator’s hydraulic system converts engine power into controlled movement for the boom, arm, bucket, swing motor, and travel motors. The system transmits force through pressurized hydraulic fluid rather than through a purely mechanical driveline. Knowing the main components inside the circuit makes troubleshooting and parts selection faster. ISO 4413 sets baseline safety and system requirements for hydraulic circuits used in mobile equipment [1].
How the Excavator Hydraulic Circuit Works
The hydraulic components in an excavator form a continuous power path. The pump draws fluid from the reservoir and sends it under pressure to the control valve. When the operator moves a joystick or travel pedal, a spool shifts and directs flow to a cylinder or motor. Return fluid then moves through filters and back to the reservoir. A relief valve limits peak system pressure when a load exceeds circuit settings.
Key sections:
- Reservoir: stores fluid, allows air separation, and supports cooling.
- Pump: converts mechanical input into hydraulic flow.
- Control valve: routes flow based on the operator’s command.
- Cylinders and motors: convert hydraulic energy into linear or rotary movement.
- Filter and lines: condition the fluid and carry it between components.
Standard graphic symbols from ISO 1219-1 make system schematics easier to read when tracing pump, valve, and cylinder circuits [2].
Hydraulic Pump
The pump is the main pressure generator in the circuit. Mobile excavator pumps are generally positive-displacement machines, meaning they move fluid by changing a sealed chamber’s volume [3]. Many mid-size and larger excavators use variable-displacement axial-piston pumps, while smaller machines may use gear pumps. The pump should match the engine’s input speed, system flow demand, pressure rating, mounting, and port configuration.
Pump wear tends to appear as reduced movement speed, weak breakout force, unusual noise, or increased case drain flow. Before replacing a pump, inspect the suction line, filter, coupling, and relief valve. The mechanical connection between engine and pump is a common failure point.
Pump drive alignment and coupling selection affect shaft bearing life, vibration, and overall pump reliability. <How to Choose the Right Hydraulic Pump Coupling for Your System> covers coupling types, fit checks, and replacement cues for hydraulic systems.
Hydraulic Fluid and Reservoir
Hydraulic fluid transmits power, lubricates internal parts, transfers heat, and carries contaminants to the filters. Oil is classified under ISO 6743-4; common excavator antiwear grades fall into the HM family or HV family for higher-temperature or cold-start performance [4]. The proper viscosity range comes from the operator manual or component specification.
The reservoir stores fluid and helps release trapped air. It usually contains a filler breather, level gauge, and return diffuser. A low fluid level can introduce air into the pump, causing noise, spongy controls, and heat. Overfilled reservoirs can cause fluid to escape through the breather or create uneven cooling.
Control Valves and Pilot Controls
The main control valve receives pump flow and sends it to the appropriate circuit. Directional spools block or open passages depending on joystick position. A pressure relief valve protects the circuit from excessive pressure. Many modern excavators use load-sensing or pilot-operated valves to reduce flow when no function is requested.
Pilot controls move the main spool with low-pressure hydraulic or electronic signals. Worn pilot lines, damaged solenoids, or a sticking spool can cause delayed or jerky movement. If a single function is slow but the rest of the machine operates normally, the fault is often isolated in the valve section or pilot circuit.
Hydraulic Cylinders
Excavator cylinders perform linear work. The boom, arm, and bucket cylinders each contain a barrel, piston, rod, gland, and seal set. Pressurized fluid enters one side of the piston, pushes the rod outward or pulls it inward, and then returns to the reservoir.
Cylinder seals separate high-pressure oil from atmosphere and prevent internal bypass. Worn rod seals lead to external wetting, while damaged piston seals allow oil to leak past the piston, causing drift under load and weak holding force.
Cylinder drift under load often points to internal leakage or degraded seals. <Excavator Seal Kits: Fast 3-Day Delivery for Repairs> covers seal kit choices and fast replacement steps that reduce repair downtime.
Hydraulic Motors
Swing and travel motors convert hydraulic flow into rotary motion. A swing motor turns the upper structure, while travel motors drive the track final drives. These motors rely on tight internal clearances and require clean oil and adequate case drain flow.
Motor wear appears as weak rotation, inability to hold position, case drain leakage, or overheating. Contamination is a frequent cause because small particles can score internal surfaces. A failed motor often sends debris through the circuit, so flushing the system and replacing filters is part of a complete repair.
Pump and motor shafts often transmit torque through a coupling designed to absorb misalignment and protect the shaft. <Fluid Coupling: Principles and Industrial Applications in 2026> covers coupling operating principles and application criteria for industrial systems.
Filtration, Hoses, and Seals
Filtration is the main defense against contamination. Return filters, pressure filters, and case drain filters remove particles before they reach tight clearances. Hoses must carry system pressure without ballooning and should be routed away from sharp edges and heat sources. Seals must be compatible with the oil type and service temperature.
Maintenance focus areas:
- Replace filters according to the service schedule or pressure-drop signal.
- Inspect hose covers for abrasion, cracking, or bulges.
- Keep new oil clean during filling; use sealed transfer containers.
- Check cylinder rods for scratches that can damage seals.
Common Hydraulic Failure Symptoms
Slow or weak movement may indicate pump wear, relief valve leakage, low fluid level, or internal cylinder bypass. Overheating often points to relief bypass, a restricted cooler, aerated fluid, or the system working above its normal duty cycle. Jerky response can come from air in the fluid, cavitation, a sticky spool, or pilot supply issues.
Basic diagnostic order before replacing parts:
- Check fluid level and condition.
- Inspect suction and return lines.
- Replace or inspect filters.
- Listen for pump noise and check case drain flow.
- Test pilot pressure and main relief pressure.
Need a Hydraulic Component Match?
If you are sourcing a replacement pump, seal kit, valve section, or hose set, include the excavator model, serial number, part number, and current symptom in your inquiry. A clear photo of the data plate and failed part helps confirm fitment. Email [email protected] with these details for a specification check and quote.
Parts Fit Check for Your Hydraulic System
Finding the correct hydraulic component starts with machine model, serial number, part number, and failure symptoms. Send this information with a photo of the data plate to +86-21-55800172 or [email protected]. Shanghai Yanli Construction Machinery Co., Ltd. supplies hydraulic components, pumps, seal kits, and related parts to mining companies, repair workshops, and construction contractors across Asia, Russia, Africa, and Southeast Asia.
Frequently Asked Questions
What are the essential parts of an excavator hydraulic system?
The main parts are the hydraulic pump, fluid reservoir, control valves, hydraulic cylinders, swing and travel motors, hoses, filters, and seals. These components work together to convert engine power into controlled linear and rotary movement.
How do I know if the hydraulic pump is failing?
Common signs include slow or weak boom, arm, or bucket response, unusual pump noise, overheating, and reduced system pressure. Pressure and flow testing should be performed before replacing the pump.
What causes an excavator hydraulic system to overheat?
Overheating may come from relief valve bypass, restricted cooling, low fluid level, aerated oil, or internal leakage. Inspect the cooler, reservoir level, filter condition, and system pressure.
What is the difference between open-center and closed-center hydraulic circuits?
In an open-center circuit, pump flow returns to the tank at low pressure when no function is active. In a closed-center circuit, a variable-displacement pump reduces flow until a valve opens, which can improve efficiency and reduce heat buildup.
How often should hydraulic fluid and filters be replaced?
Use the service intervals in the excavator operator manual. Fluid sampling and filter inspections are normally part of preventive maintenance; dusty or high-temperature working conditions may require shorter intervals.
References
[1] International Organization for Standardization, ISO 4413:2010, Hydraulic fluid power — General rules and safety requirements for systems and their components, Geneva: ISO, 2010.
[2] International Organization for Standardization, ISO 1219-1:2012, Fluid power systems and components — Graphical symbols and circuit diagrams — Part 1: Graphic symbols for conventional use and data-processing applications, Geneva: ISO, 2012.
[3] A. Esposito, Fluid Power with Applications, 7th ed., Upper Saddle River, NJ: Pearson, 2009.
[4] International Organization for Standardization, ISO 6743-4:2015, Lubricants, industrial oils and related products (class L) — Classification — Part 4: Family H (Hydraulic systems), Geneva: ISO, 2015.
