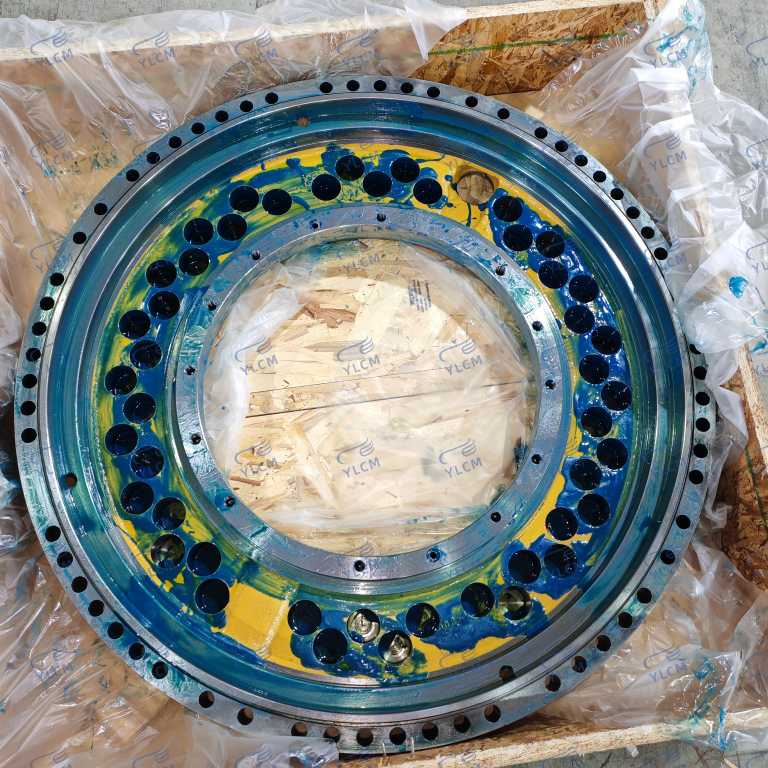

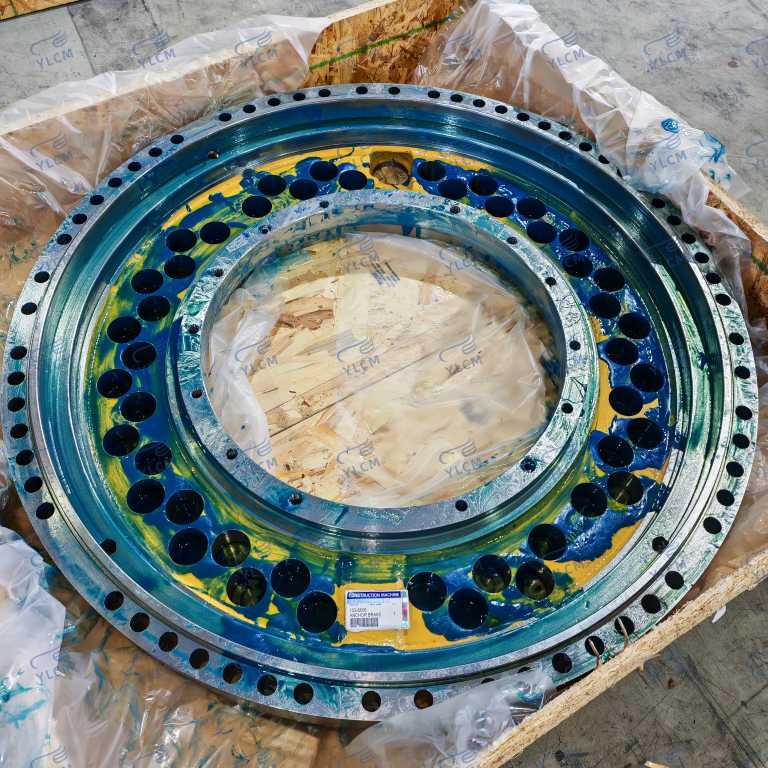

103-8506 Service Brake Anchor is a ductile iron brake component designed for Caterpillar heavy-duty truck service brake systems. Measuring 987 mm in outside diameter, 500.38 mm in inside diameter and 132 mm in height, it helps secure brake shoes and maintain proper alignment within the braking mechanism. The part is officially compatible with CAT 785G, 793 and 793D, as well as several other 785/789/793-series applications.
| Item | Specification |
|---|---|
| Product Name | Service Brake Anchor |
| Part Number | 103-8506 |
| Brand | Caterpillar (CAT) |
| Machine Model | CAT 785G / 793 / 793D |
| Weight | 231 kg |
| Material | Ductile (Spheroidal) Iron |
| Condition | Brand New – Genuine |
| Warranty | 6 Months |
| Packaging | Standard Export Carton |
| Availability | Generally in stock |
| Origin | China |
The 103-8506 Service Brake Anchor is officially listed for a wide range of Caterpillar trucks, including:
Caterpillar also lists applications for certain 784B/784C tractors and other off-highway truck configurations. Compatibility should be checked against the machine serial number and configuration before ordering.
The 103-8506 is especially suitable for heavy-duty haul trucks operating in mining and large-scale earthmoving environments where dependable braking performance is essential.

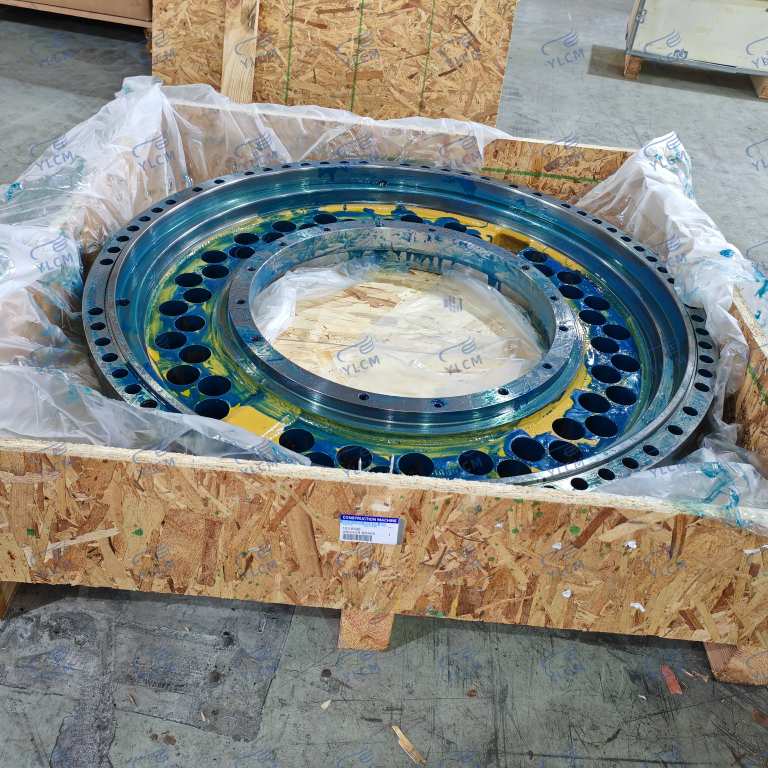

YLCM provides secure export packaging to protect the brake anchor during handling, transportation and storage.
Packaging can be selected according to product dimensions, quantity and destination.
YLCM provides flexible international transportation solutions:
The appropriate logistics method can be arranged according to destination, order quantity, delivery schedule and cargo requirements.
Q1: What is 103-8506?
A: 103-8506 is a Caterpillar Service Brake Anchor used with the service brake group on heavy-duty Cat equipment.
Q2: What does the brake anchor do?
A: It holds the brake shoes securely in position within the braking mechanism, helping maintain consistent brake alignment.
Q3: What material is 103-8506 made from?
A: Caterpillar specifies ductile (spheroidal) iron for the component.
Q4: What are the dimensions of 103-8506?
A: The official dimensions are 987 mm outside diameter, 500.38 mm inside diameter and 132 mm height.
Q5: Is 103-8506 suitable for CAT 785G?
A: Yes. CAT officially lists the 785G among the compatible truck models.
Q6: Is 103-8506 suitable for CAT 793 and 793D?
A: Yes. Both CAT 793 and 793D are included in Caterpillar’s official compatibility list.
Q7: Can YLCM verify compatibility before ordering?
A: Yes. Send the part number, machine model, serial number and quantity, and our team can assist with compatibility verification.
Q8: How can I request a quotation?
A: Provide the part number, machine model, quantity and destination. YLCM can check availability, price, lead time, packaging and shipping options.
Looking for 103-8506 Service Brake Anchor for CAT 785G, 793 or 793D? Contact YLCM for the latest quotation and availability.
Please provide:
YLCM can assist with compatibility verification, quotation, lead time, export packaging and international logistics.
