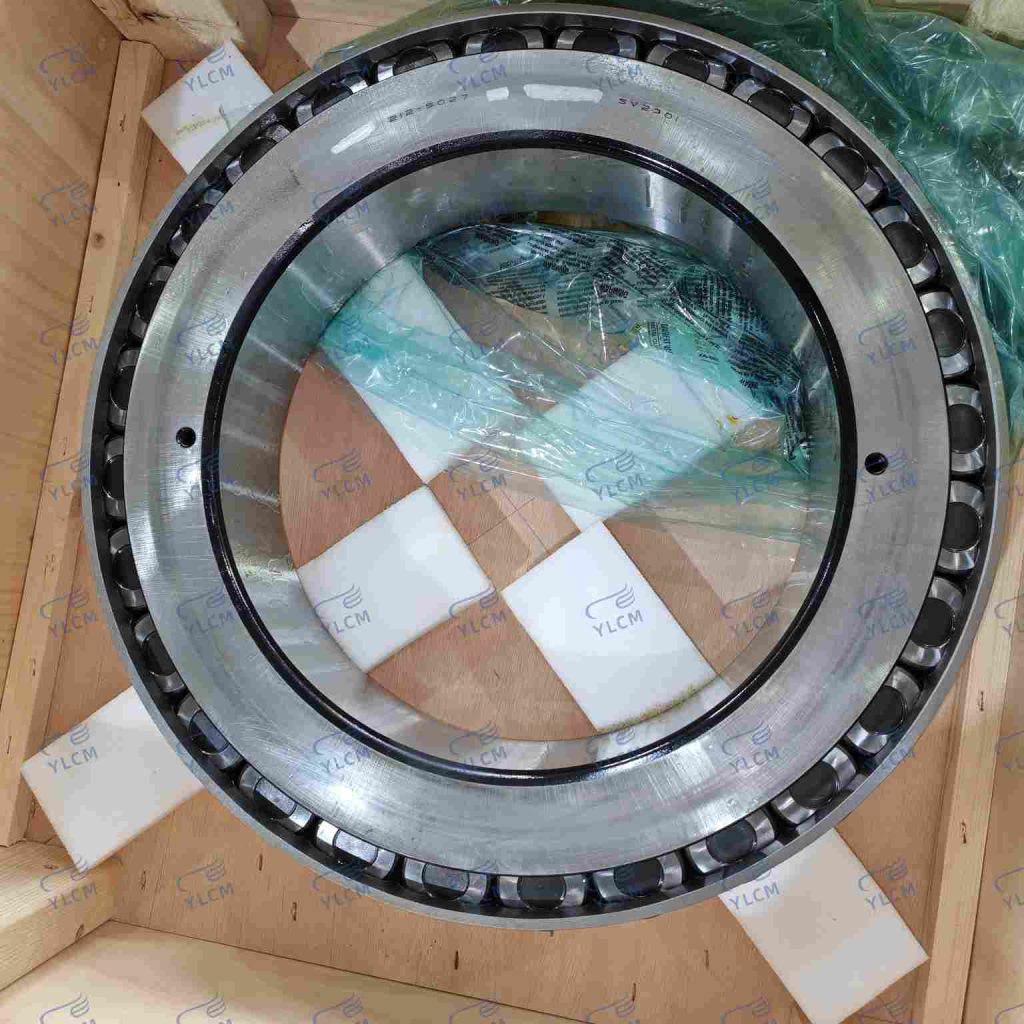

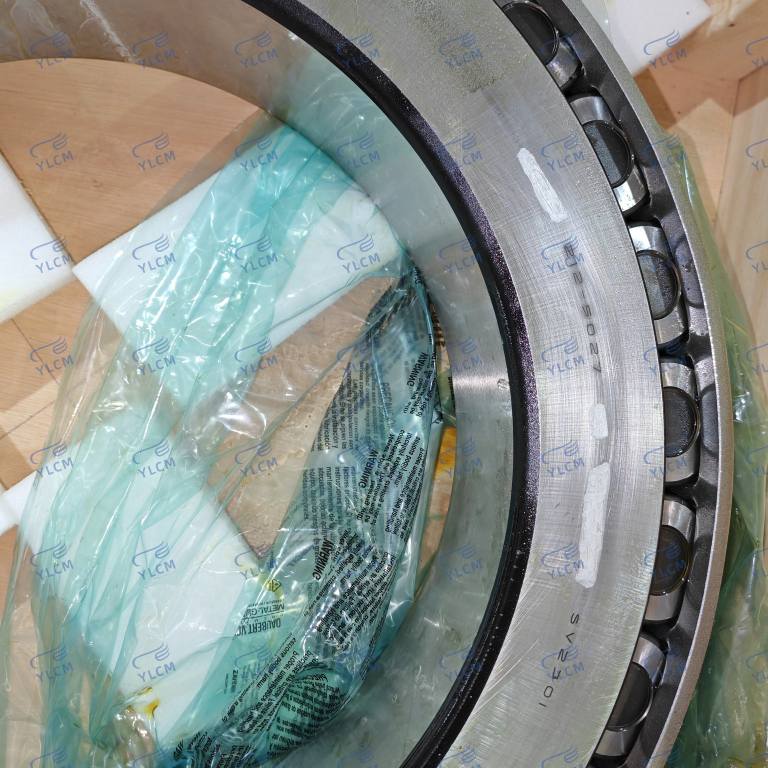

212-5027 Bearing Cone is a Type TS, debris-resistant tapered roller bearing component designed for Caterpillar heavy-duty drivetrain applications. It features a 317.5 mm (12.500 in) cone bore and 101.6 mm (4.000 in) cone width, and is designed to accommodate combined radial and axial loads. Caterpillar officially lists the part for CAT 793F AC, 785D, 793F OEM, 793F XQ, 793 and 793D, among other applications.
| Item | Specification |
|---|---|
| Product Name | Bearing – Cone (Debris Resistant) |
| Part Number | 212-5027 |
| Brand | Caterpillar (CAT) |
| Machine Model | CAT 793F AC / 785D / 793F |
| Weight | 74.2 kg |
| Material | Debris-Resistant Bearing Material |
| Condition | Brand New – Genuine |
| Warranty | 6 Months |
| Packaging | Standard Export Carton |
| Availability | Generally in stock |
| Origin | China |
The 212-5027 Bearing Cone is a debris-resistant tapered roller bearing component designed for demanding Caterpillar drivetrain applications. As the cone-only portion of a tapered roller bearing, it works with the corresponding bearing cup to support combined radial and axial loads generated during heavy-duty operation. Caterpillar designs its tapered roller bearings according to application load, operating speed, temperature range and dimensional requirements.
The component features a 317.5 mm (12.500 in) cone bore diameter and 101.6 mm (4.000 in) cone width. Its Type TS design and debris-resistant construction make it suitable for heavy-duty final-drive and drivetrain environments where contamination resistance and dependable bearing performance are important.
Caterpillar officially lists 212-5027 for:
The actual fit can depend on machine configuration and serial number, so compatibility should be confirmed before ordering.
The 212-5027 is especially suitable for heavy-duty mining trucks and drivetrain systems operating under high loads, vibration and demanding field conditions.

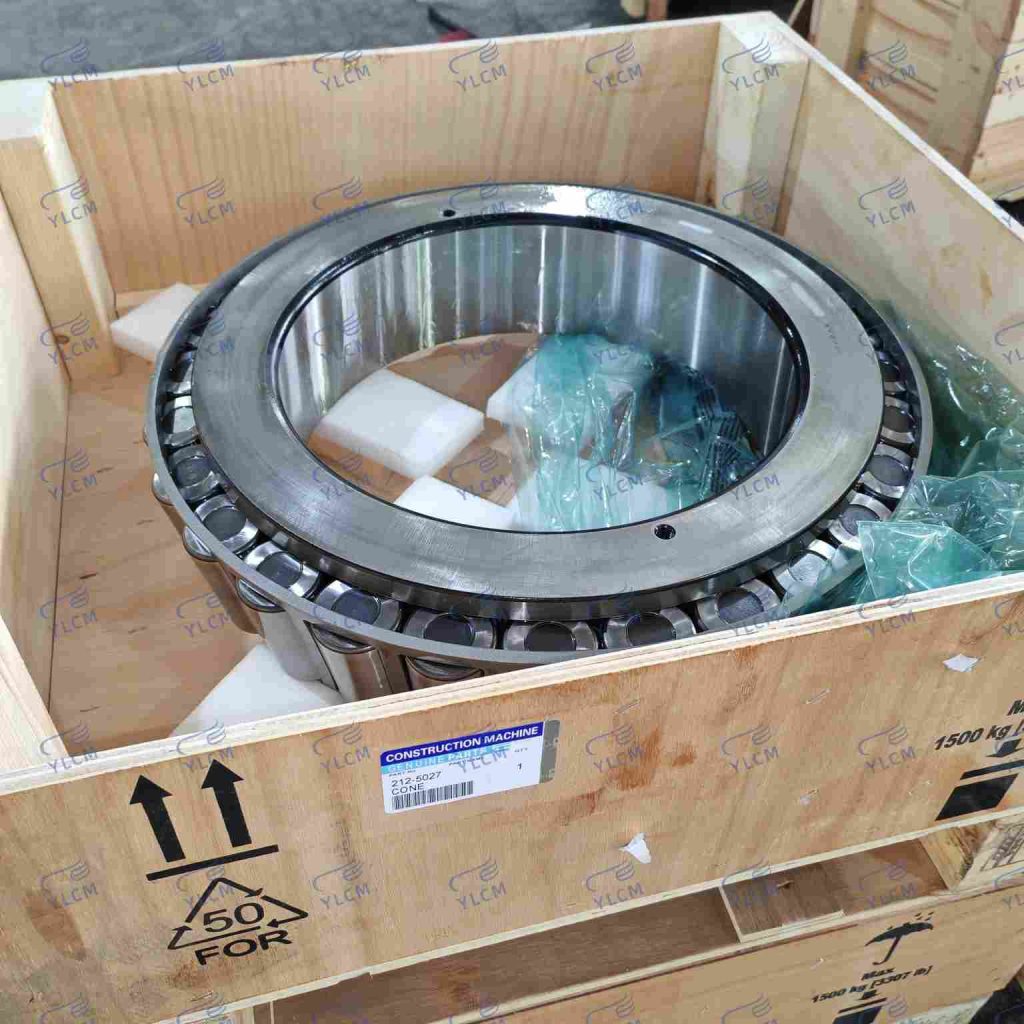

YLCM provides secure export packaging to protect the bearing cone during transportation and storage.
Packaging can be adjusted according to product quantity, dimensions and destination.
YLCM supports flexible international transportation solutions:
The appropriate transportation method can be arranged according to destination, quantity, delivery schedule and cargo requirements.
Q1: What is 212-5027?
A: 212-5027 is a Cat Bearing – Cone (Debris Resistant), used as the cone component of a tapered roller bearing assembly.
Q2: What type of bearing is 212-5027?
A: Caterpillar identifies it as a Type TS tapered roller bearing cone.
Q3: What is the bore diameter of 212-5027?
A: The cone bore diameter is 317.5 mm (12.500 in).
Q4: What is the cone width?
A: The specified cone width is 101.6 mm (4.000 in).
Q5: Is 212-5027 suitable for CAT 793F?
A: Yes. Caterpillar lists 793F AC, 793F OEM and 793F XQ as compatible applications.
Q6: Is 212-5027 suitable for CAT 785D?
A: Yes. CAT officially includes the 785D in the compatible model list.
Q7: Is 212-5027 supplied as a complete bearing?
A: No. Caterpillar identifies it as a cone only. The matching bearing cup/race should be verified separately when required.
Q8: Can YLCM verify compatibility?
A: Yes. Send the part number, machine model, serial number and required quantity, and YLCM can assist with compatibility verification.
Looking for 212-5027 Bearing Cone for CAT 793F AC, 785D or 793F? Contact YLCM for the latest quotation, availability and delivery information.
Please provide:
YLCM can assist with compatibility verification, quotation, lead time, export packaging and international logistics.
