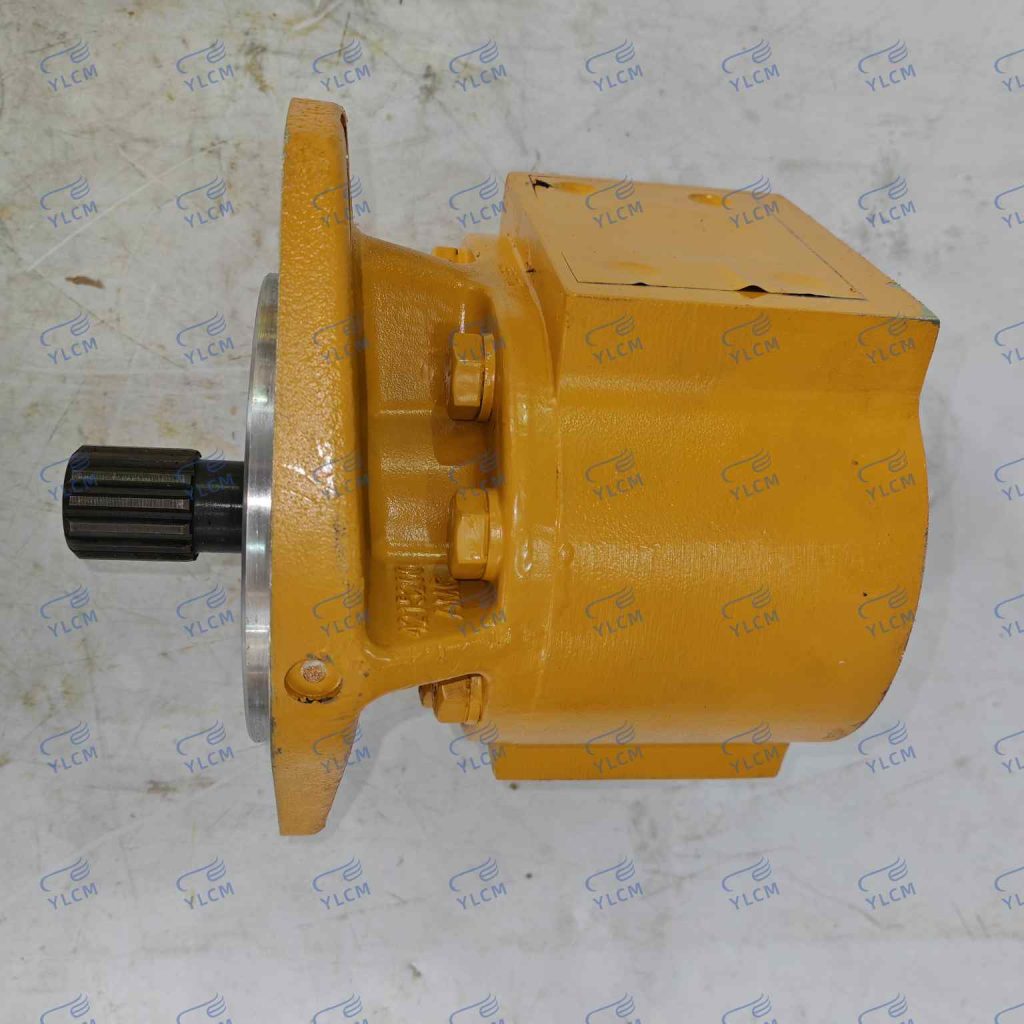

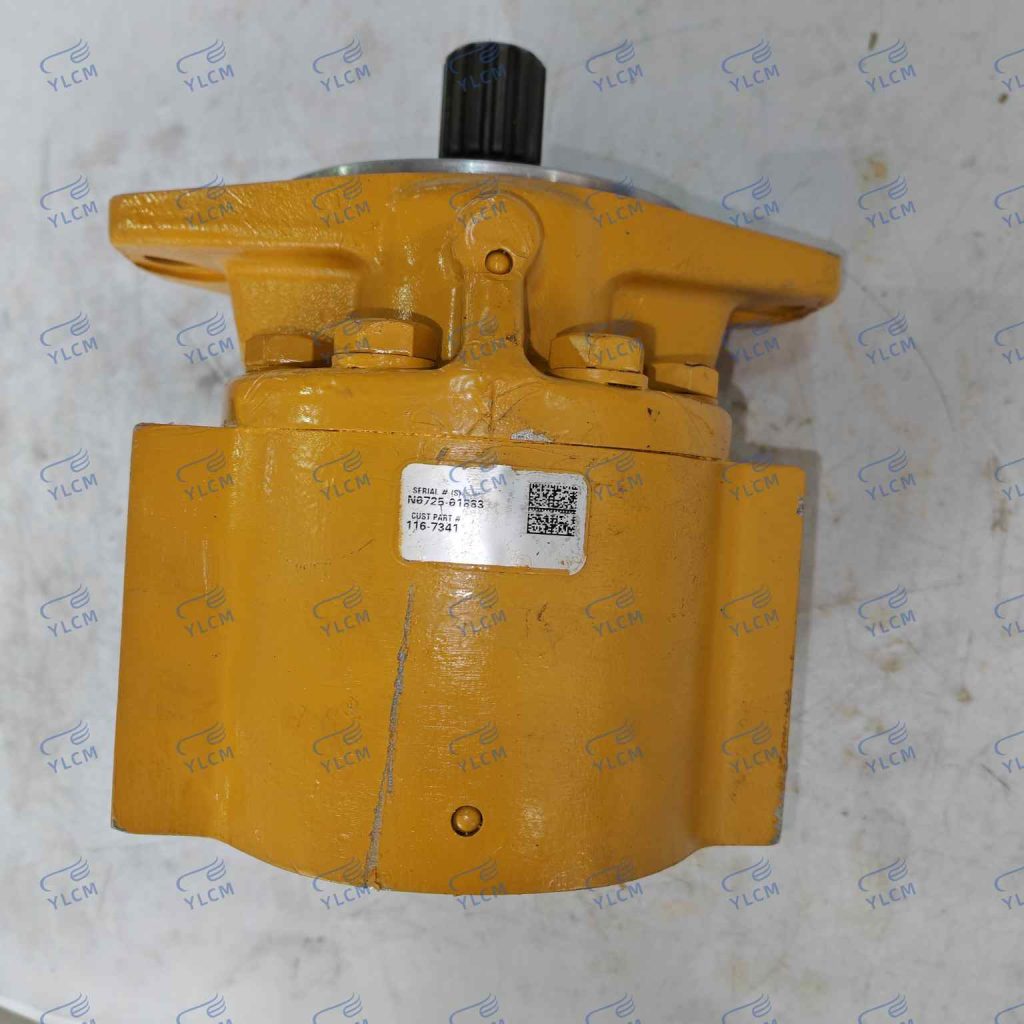

116-7341 PUMP GP-GR A for CAT 994/994F/994D

Item	Specification
Product Name	One Section Gear Pump
Part Number	116-7341
Brand	Caterpillar (CAT)
Machine Model	CAT 994 / 994F / 994D
Weight	10.2 kg
Material	Steel (Body), Carbon Steel
Condition	Brand New – Genuine
Warranty	6 Months
Packaging	Standard Export Carton
Availability	Generally in stock
Origin	China

Features & Benefits

• Brake Cooling Application – Designed as a gear pump for the brake cooling system of Cat heavy-duty wheel loaders.
• High Flow Capacity – Provides a pump capacity of 84 L/min (22.2 GPM) for effective hydraulic oil circulation.
• 1700 RPM Rated Speed – Designed to operate at a rated speed of 1700 RPM for demanding equipment applications.

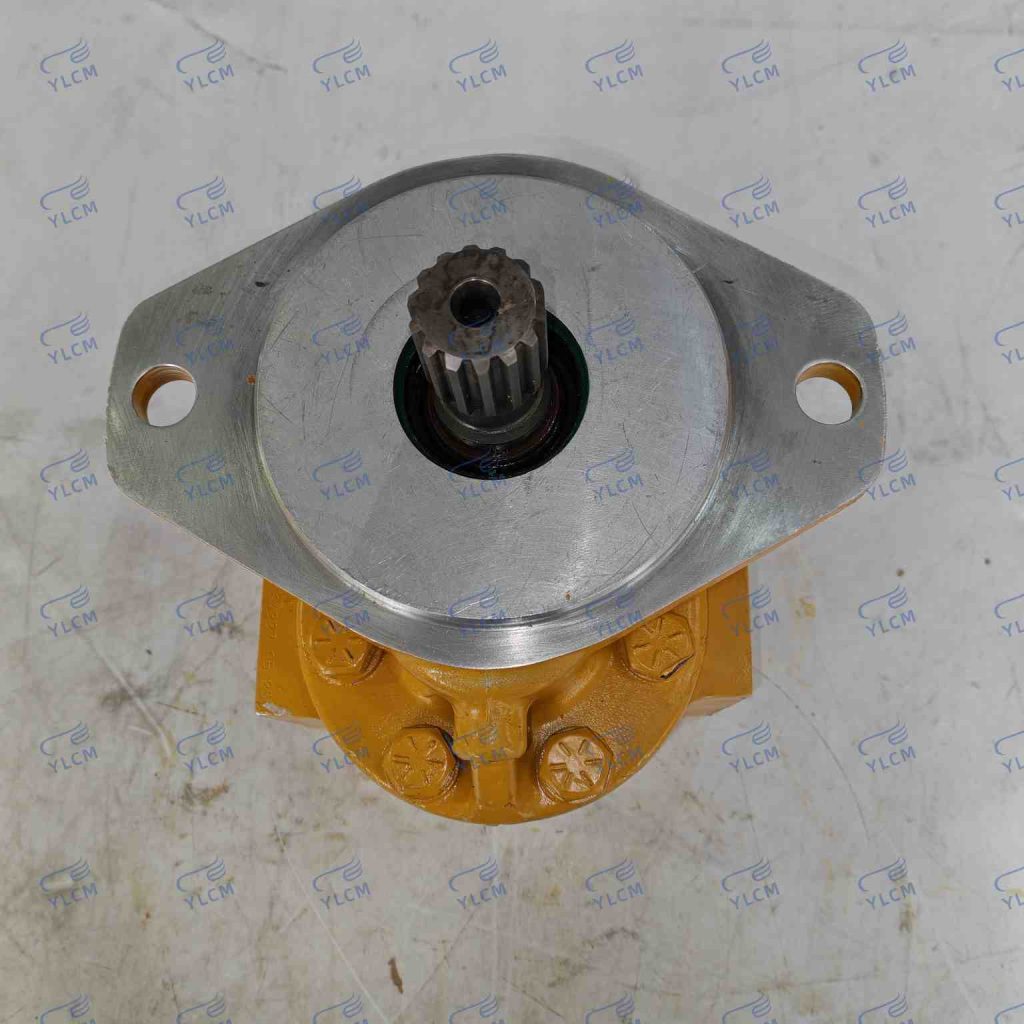

• 14-Tooth Drive Spline – Features a 14-tooth drive shaft spline with a 31 mm (1.2 in) spline diameter for secure power transmission.
• Clockwise Rotation – Engineered for clockwise rotation to match the specified Cat hydraulic system configuration.
• Robust Steel Construction – Uses a steel pump body and carbon steel components for durability in heavy-duty operating environments.
• Standardized Port Design – Equipped with a 4-bolt flange 2-inch SAE suction port and a 4-bolt flange 1-1/4-inch SAE discharge port.
• Reliable Hydraulic Performance – Cat gear pumps are designed to provide consistent oil flow and pressure for high-demand hydraulic systems.

The Caterpillar specification lists an overall length of 8.3 in and a flange-hole spacing of 7.1 in.

Compatible Machine

The 116-7341 One Section Gear Pump is listed for:

• CAT 994 Wheel Loader
• CAT 994F Wheel Loader
• CAT 994D Wheel Loader
• CAT 994H Wheel Loader

For replacement orders, machine serial number and configuration should be checked to confirm the correct application. Caterpillar notes that configuration changes may affect part compatibility.

Applications

• Mining
• Quarry
• Construction
• Heavy Earthmoving
• Large Infrastructure Projects

Why Choose YLCM?

• 20+ Years Experience – Professional experience in construction and mining machinery parts.
• Large Warehouse – Extensive inventory covering hydraulic, engine, drivetrain and other machinery components.
• Fast Delivery – Efficient order processing to help reduce equipment downtime.
• Genuine & OEM Parts – Genuine, OEM and quality replacement solutions available.
• Export to 60+ Countries – Reliable international parts supply.
• Professional Technical Support – Part-number and machine compatibility assistance.

Packaging

YLCM provides secure export packaging according to the product size and transportation requirements.

• Standard Export Carton
• Heavy-Duty Wooden Case
• Shockproof Protection
• Moisture-Proof Protection
• Secure Fixation

Professional packaging helps protect the gear pump from impact, moisture and movement during long-distance transportation.

Shipping

YLCM provides flexible international logistics solutions:

• Sea Freight
• Railway Transportation
• Land Transportation
• Multimodal Logistics Solutions

The shipping method can be arranged according to destination, order quantity and delivery requirements.

FAQ

Q1: What is 116-7341?
A: 116-7341 is a Caterpillar One Section Gear Pump designed for brake cooling applications.

Q2: Which machines use 116-7341?
A: Caterpillar lists it for the 994, 994F, 994D and 994H wheel loaders.

Q3: What is the pump capacity?
A: The specified pump capacity is 84 L/min (22.2 GPM).

Q4: What is the rated speed?
A: The rated speed is 1700 RPM.

Q5: How many drive shaft spline teeth does it have?
A: The drive shaft has 14 spline teeth with a 31 mm (1.2 in) spline diameter.

Q6: What is the rotation direction?
A: The official Cat specification identifies the rotation as clockwise (CW).

Q7: What are the suction and discharge ports?
A: The suction port is a 4-bolt flange 2-inch SAE port, while the discharge port is a 4-bolt flange 1-1/4-inch SAE port.

Q8: How can I confirm compatibility before ordering?
A: Send us the part number, machine model, serial number if available, quantity and destination. YLCM can help verify compatibility and provide a quotation.

Request a Quote

Looking for 116-7341 One Section Gear Pump for your CAT 994, 994F or 994D?

Send YLCM PARTS your part number, machine model, serial number, required quantity and destination. Our team can assist with compatibility verification, quotation, availability, lead time, professional packaging and global logistics.
