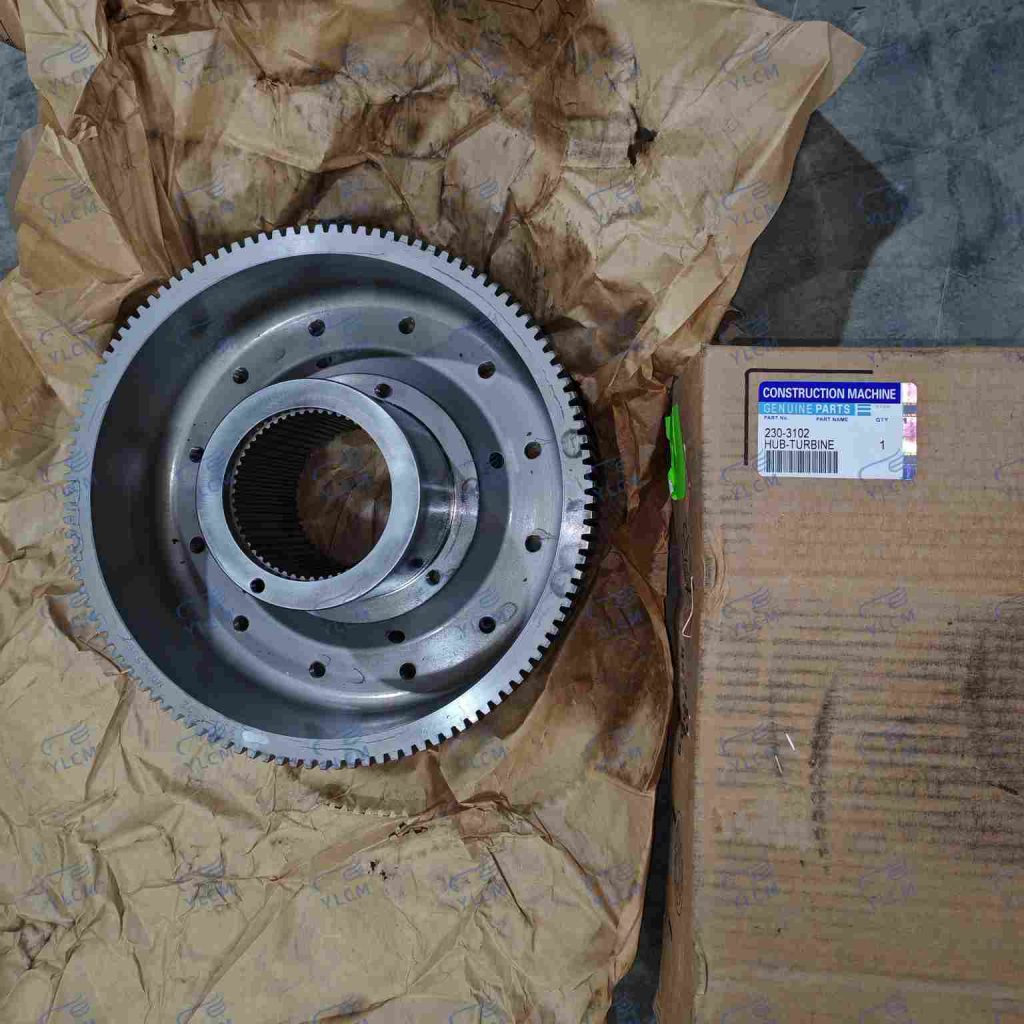

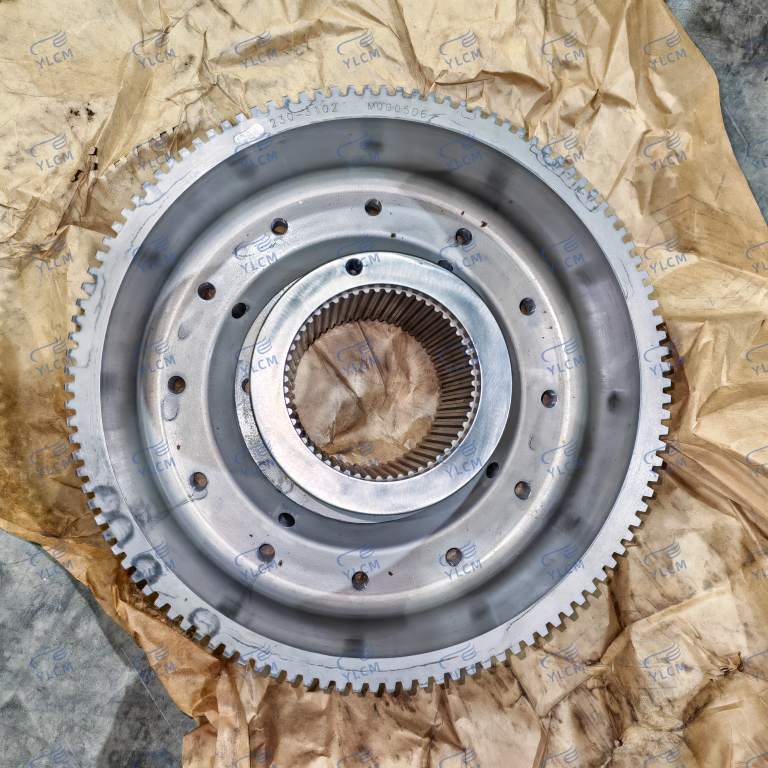

230-3102 Turbine Hub is a Caterpillar torque converter component made from low alloy steel and featuring 114 external teeth. Designed for CAT 793D, 793F and 793F CMD mining trucks, it supports reliable torque transmission within the drivetrain and is suitable for demanding mining, quarry and heavy earthmoving applications.
| Item | Specification |
|---|---|
| Product Name | Turbine Hub |
| Part Number | 230-3102 |
| Brand | Caterpillar |
| Machine Model | CAT 793D / 793F / 793F CMD / 793F OEM / 793F XQ |
| Application | Torque Converter |
| Part Type | Turbine Hub |
| Gear Type | External Teeth |
| Number of External Teeth | 114 |
| Material | Low Alloy Steel |
| Function | Torque Converter Turbine Power Transmission |
| Weight | 22.9 kg |
| Condition | Brand New – Genuine |
| Warranty | 6 Months |
| Packaging | Standard Export Carton |
| Availability | Generally in stock |
| Origin | China |
The 230-3102 Turbine Hub is listed by Caterpillar for:
Caterpillar identifies these as compatible factory-fit applications. Machine serial number and torque converter configuration should be verified before ordering.
The 230-3102 Turbine Hub is used in the torque converter system of Caterpillar large mining and off-highway trucks. It works with the turbine and associated drivetrain components to support torque transfer from the torque converter to the transmission.
Typical applications include:
It is particularly suited to heavy-duty haul trucks operating under high loads, frequent acceleration and demanding drivetrain conditions.
YLCM provides secure export packaging for precision drivetrain components. The turbine hub is properly protected against moisture, dust, impact and contamination during transportation.
The standard product packaging specification is Standard Export Carton. Reinforced wooden packaging can be arranged for larger or consolidated orders.
YLCM supports international transportation according to destination, order quantity and delivery requirements:
Professional packing and secure handling help protect the machined gear surfaces during international transportation.
Looking for 230-3102 Turbine Hub for a CAT 793D, 793F or 793F CMD?
Send us the part number, machine model and serial number if available. YLCM can help verify the torque converter configuration and provide price, availability, lead time, packaging and shipping options.
